Can Clean Energy Eliminate All Rejected Energy?
To understand energy on a large scale in the US, you can’t do better than studying the energy flow charts from the Lawrence Livermore National Lab (part of the US Department of Energy). In the 2023 version above, you see the various fuels we use on the left. On the right you see the outputs. And the thing nearly everyone notices immediately is the huge chunk called rejected energy.
The origin of rejected energy
In a previous article on rejected energy, I explained why it’s there and how resistant it is to reduction as long as we keep our current fossil-heavy mix of fuels. “The first thing to understand is that the great majority of that rejected energy comes from burning fuels,” I wrote. Then we convert the heat of combustion to mechanical work in cars and other machines. Or we go a step further and turn the mechanical work into electricity.
But we can’t ever use all of the heat energy we get from burning those fuels. Here’s what I wrote about that:
As it turns out, we’ve known this limitation for nearly 200 years. A French kid† named Sadi Carnot figured out that there’s a limit on the efficiency of heat engines. He discovered the thermodynamic cycle that yields the maximum efficiency of a heat engine. His work is so important in thermodynamics that his maximum theoretical efficiency is called the Carnot efficiency.
There’s more about rejected energy and the Lawrence Livermore charts in that article, so you might want to click over there and read it.
Can we reduce rejected energy to zero?
Now, the main point of this article is reducing that excess heat we’re not able to use. As I wrote in the previous article, “efficiency isn’t the solution to rejected energy.” Yes, it can cut it down some, but we’re still playing a percentages game.

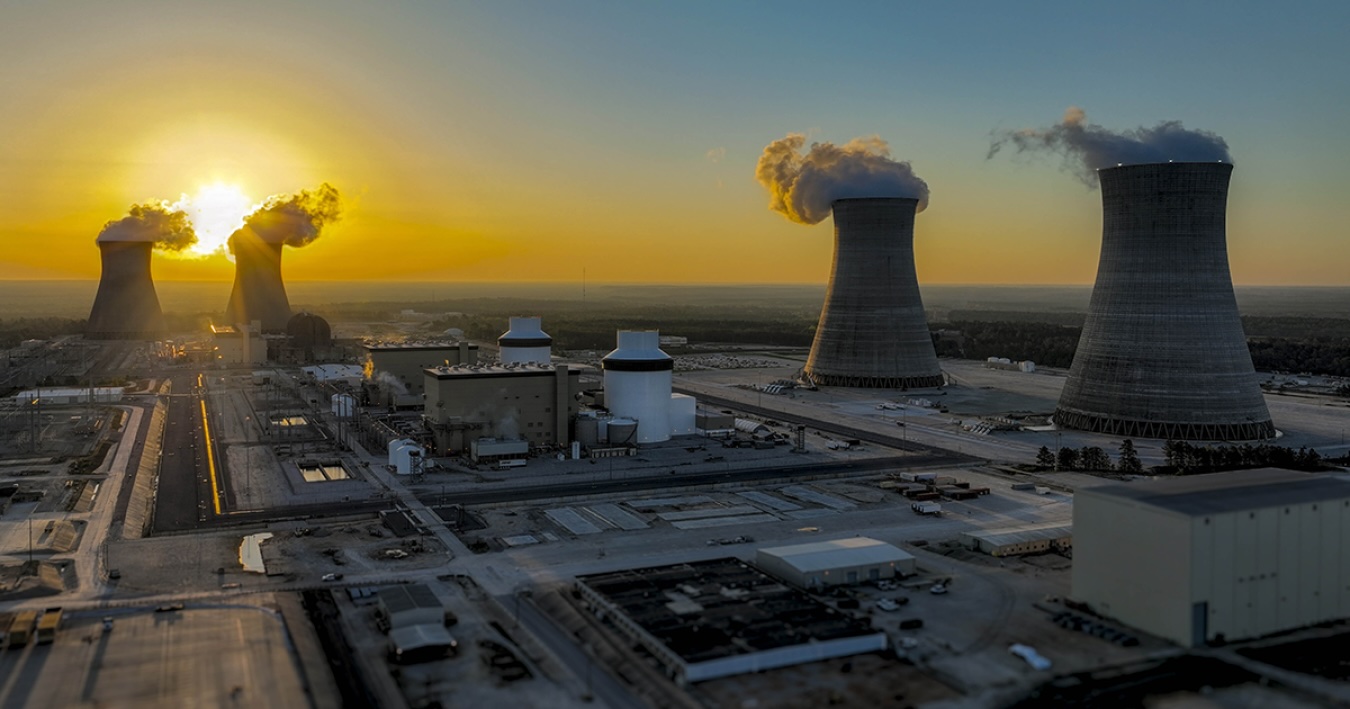

The only way to make a massive dent in it is to stop burning stuff. Even that would still leave some, though, primarily because of two things: nuclear power production and electrical losses.
Electrical losses also add to the total amount of rejected energy. When electricity travels through the power lines to your house, some of that energy goes to heating the wires. And we lose more in the end uses.
An air conditioner provides a perfect example of end use losses. When we do cooling load calculations at Energy Vanguard, we include the internal loads. When you turn on a light or a fan or an electric oven, all the electricity you use eventually turns into heat. Most of that heat stays in the house, which is why we include it in load calculations.
So the answer is no. We cannot reduce rejected energy to zero.
Do solar and wind add to rejected energy?

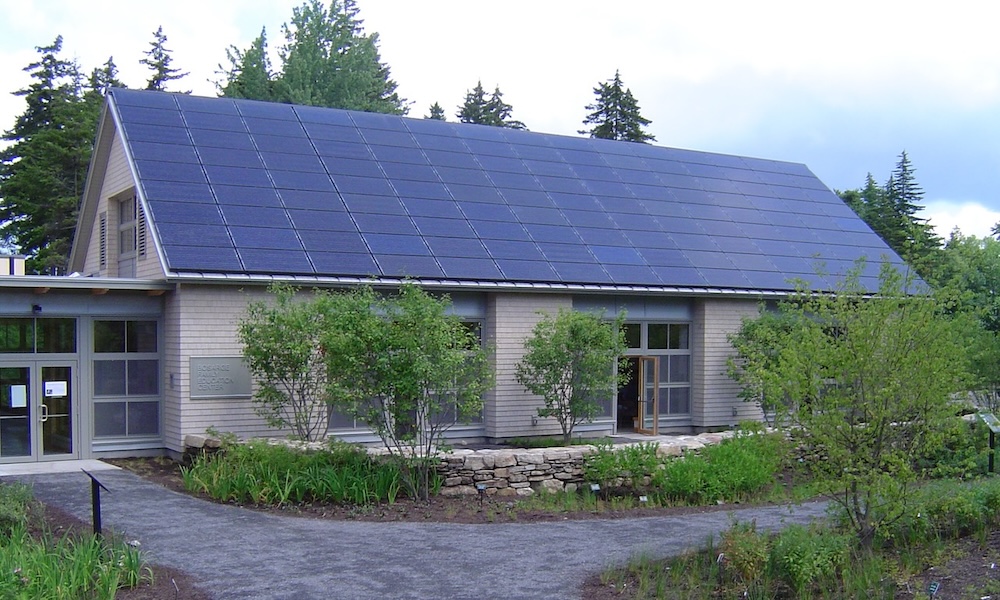

When the source of our energy is photovoltaics and wind turbines, they’re not 100 percent efficient. Current photovoltaic (PV) modules, for example, are about 22 percent efficient at converting sunlight to electricity. So should we count the other 78 percent as rejected energy?
No. The excess solar energy doesn’t change form. It doesn’t create pollution. And it doesn’t cost anything. The same is true for wind.
But as soon as we start moving that energy from the modules or turbines through wires, we start getting some rejected energy. Same for running it through inverters to convert between DC and AC or storing it in batteries.
How low can we go?
The most recent LLNL energy flow chart (lead image above) shows that we used 93.6 quadrillion BTUs (quads) of primary energy in 2023. Of that, only 32.1 quads was useful energy that moved vehicles, heated homes, and made stuff. The other 61.5 quads was rejected, mainly as waste heat.
To come up with an estimate of how low we can go with rejected energy if we used only solar, wind, and other renewable sources, I asked claude.ai. The answer was 8 to 12 quads. That’s only 13 to 20 percent of the rejected energy in our current system.
So if we currently need 93.6 quads of primary energy to get 32.1 quads of usable energy, we would need only about 40 to 52 quads of primary energy without the fossil and nuclear. So instead of using only about a third of the energy we’re producing, we’d be using 60 to 80 percent.
The real takeaways
Understanding rejected energy is important. But the solution isn’t finding a way to make better use of all that waste heat. That would mean those thermal power plants (fossil and nuclear) would need to be close to places that could make use of the excess heat for water and space heating. That ain’t gonna happen to any great extent.
What this analysis really means is that we need to focus on the right numbers. To do everything we’re doing now, we don’t need to replace the whole amount of primary energy (94 quads in 2023). We need about half of that, maybe a bit more. Add in nuclear, which isn’t going away, and it’s a bit higher.
Here’s a summary of the important points:
- We cannot take rejected energy all the way down to zero.
- Rejected energy comes from nuclear power generation, too, but nuclear doesn’t come with the same carbon and pollution burden as fossil fuels. (It does still come with the burdens of safety risks, nuclear waste, and a tremendously high price, as Georgia Power proved again.)
- Solar and wind don’t create rejected energy during production, but there are losses with renewably-generated electricity afterwards.
- We don’t need to replace the amount of energy on the input side of the chart. For the same useful energy we got from the inputs in 2023, we may need only 40 to 50 quads with solar and wind instead of the 94 quads it took in our current energy system.
So, if you want to reduce the amount of energy that gets rejected, solar and wind are the way to go.
The Claude analysis
I turned the analysis from claude.ai into an artifact. Click that link to read it.
Afterword
Shortly after publishing this article, I received Lloyd Alter’s latest article in my inbox. It’s about the US Secretary of Energy saying he wants to “unleash” 35 gigawatts of diesel-fueled electric generators to help power America. Ugh!
† Carnot was only 28 when he figured this out.
Allison A. Bailes III, PhD is a speaker, writer, building science consultant, and the founder of Energy Vanguard in Decatur, Georgia. He has a doctorate in physics and is the author of a bestselling book on building science. He also writes the Energy Vanguard Blog. For more updates, you can follow Allison on LinkedIn and subscribe to Energy Vanguard’s weekly newsletter and YouTube channel.
